DESCRIPTION

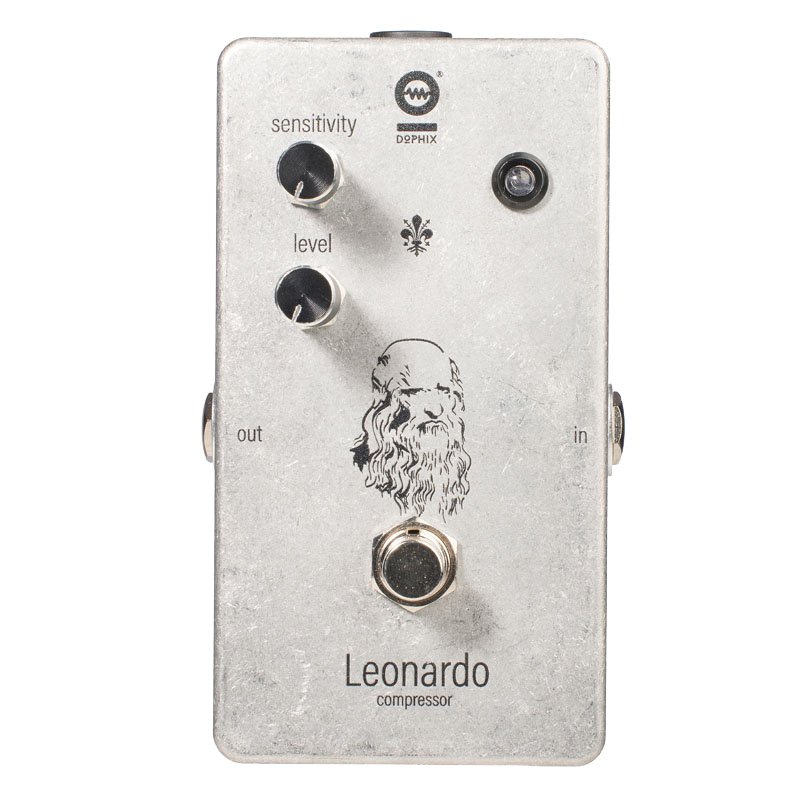

Compressor with 2 Controls “Output”  and “Sensitivity”.

Compressor designed to achieve a controlled output level related to the selected sensitivity.

With the “Sensitivity” control you can choose the best dynamic compression range. The “Output” regulation let you adjustment the optimal output level.

Leonardo is also ideal for solo sustain.

Vintage component research with: integrated circuit and transistors of the series belonging to the production of the ‘70s stock.

Manual circuit design made with attention on the treatment of the signal audio paths. Mechanical robustness, guaranteed by board-mounted components.

TRUE BYPASS switch and high quality components is one of the specific choices made standard for our pedals.

The high-brightness LEDs ensure the visibility of the ignition status even under conditions of direct reflection on the pedal.

Input/output Jack from 6.3 mm 1/4 “placed sideways to the pedal.

Input impedance 1 Mohm, output 300 ohm.

Current with LED on 19ma, standby 500 UA.

EAN Code: 8053839780096

TECHNICAL SPECIFICATIONS

Weight0.278 kg
Dimensions11 × 6 × 4 cm
Input/Output

Jack from 6.3 mm 1/4 “placed sideways to the pedal.

Switch

True Bypass

Power supply

9 volts power supply DC through internal battery or external stabilized power supply.

Battery replacement

It is possible by removing the four screws on the bottom cover.

Impedance

Input 1 Mohm, output 300 ohm.

Current

with LED on 19ma, standby 500 UA.

EAN Code

8053839780096
